TA-08 Double-Sided · Continuous support for irregular loads
1,200 × 1,000 × 150 mm (48" × 40") · HDPE with recycled content · 3 steel inserts
A double-faced pallet for loads that do not stack on their own: bags, sacks and big bags on a continuous, reinforced surface. Up to 1,800 kg in motion and 1,000 kg in racking. Forklift handling only.
Operating conditions
Not compatible with manual, hydraulic or electric pallet jacks. Because of its double-faced build, the bottom deck prevents the pallet jack’s load wheels from dropping to the floor.
Suitable for selective and double-deep racking up to 1,000 kg per position with a uniformly distributed load. For drive-in, push-back or flow systems, validate the configuration with our technical team.
Capacities are determined with a uniformly distributed load on a new pallet. Bags and big bags are concentrated, deformable loads: for this type of load, ask us for the working capacity that applies to your case.
Closed (27.1 kg): solid surface, easier to clean and more protective for thin packaging.
Perforated (24.7 kg): the recommended configuration for big bags and flexible containers, because when stacking it helps for the bottom of the bag to protrude between the slots.
|
Length (L) |
Width (W) |
Height (H) |
Max Static Load |
Max Dynamic Load |
Max Rack Load |
Weight |
|---|---|---|---|---|---|---|
|
47.2 in |
39.3 in |
5.9 in |
33,069 lb |
3,968 lb |
2,204 lb |
Perforated 54.45 lb · Closed 59.75 lb |
Length (L)
47.2 in
Width (W)
39.3 in
Height (H)
5.9 in
Max Static Load
33,069 lb
Max Dynamic Load
3,968 lb
Max Rack Load
2,204 lb
Weight
Perforated 54.45 lb · Closed 59.75 lb
|
Length (L) |
Width (W) |
Height (H) |
Max Static Load |
Max Dynamic Load |
Max Rack Load |
Weight |
|---|---|---|---|---|---|---|
|
1,200 mm |
1,000 mm |
150 mm |
15,000 kg |
1,800 kg |
1,000 kg |
Perforated 24.7 kg · Closed 27.1 kg |
Length (L)
1,200 mm
Width (W)
1,000 mm
Height (H)
150 mm
Max Static Load
15,000 kg
Max Dynamic Load
1,800 kg
Max Rack Load
1,000 kg
Weight
Perforated 24.7 kg · Closed 27.1 kg
Capacity in a standard U.S. truck (48 ft / 53 ft):
TA-08 Perforated: 504 / 540 pallets · TA-08 Closed: 500 / 500 pallets
Capacity in a standard U.S. truck (48 ft / 53 ft):
TA-08 Perforated: 504 / 540 pallets · TA-08 Closed: 500 / 500 pallets
For more technical information about the TA-08, download the Technical Data Sheet
Configuration and options
| Material | HDPE with recycled content |
|---|---|
| Reinforcement | 3 steel inserts |
| Configuration | Reversible double-sided, 4-way entry; stackable, block-stackable and rackable |
| Options | RFID and custom marking |
Features
Double-sided, works both ways
Load surface on top and bottom: reversible and more stable with loads that tend to deform or shift.
Capacity backed by steel reinforcement
Three steel inserts for 1,800 kg dynamic, 15,000 kg static and up to 1,000 kg in racking.
Designed for bags and big bags
The continuous surface avoids sharp edges and supports bagged materials, reducing damage to flexible packaging.
Two finishes for two different problems
The perforated deck drains and ventilates; the closed deck offers a solid surface that is easier to clean.
Forklift handling only
Its double-sided build does not accept pallet jacks. Always stated on the spec sheet to prevent wrong purchases.
Traceability and customization
RFID compatible, with optional custom marking for inventory control and asset identification.
Advantages
Double-faced surface for irregular loads
Continuous support on both sides, better weight distribution and less point deformation than a single-faced pallet.
More usable rack positions
Its 1,000 kg per position exceeds the TA-07 in the same format, so heavier product can go up without changing pallets.
HDPE hygiene and durability
Does not absorb water or oil, resists chemical agents and moisture, and has a non-porous, easy-to-clean surface.
Two finishes to suit the operation
Perforated for drainage and ventilation; closed for hygiene and protection of thin packaging.
48" × 40" standard and intermodal use
The dominant format in North America, around which the region’s selective racking is designed.
Durability and circular economy
HDPE with recycled content, long service life and reintegration at the end of its cycle.
Applications
- Bags and sacks of powdered or granular product
- Big bags and flexible intermediate bulk containers (FIBC)
- Uniform loads: cases, drums, pails, jugs and kegs
- Selective and double-deep rack storage
- Block stacking with stable loads
- Closed-loop operations handled by forklift
Industries
Focused on bagged and bulk product: grains, seeds, fertilizers, animal feed, flour, sugar and salt.
Is this the right model for your operation?
The TA-08 is the double-sided pallet for loads that need continuous support. If your operation works differently, these models are a better fit.
I move pallets with a pallet jack
I need more rack capacity
I need a double-sided pallet in the 48" × 48" square format
I need a double-sided pallet compatible with automated lines
Frequently asked questions
No, forklift only. If your operation uses pallet jacks, the option in the same format is the TA-07.
Yes, it is one of its main uses. For big bags and flexible containers the perforated configuration is recommended: when stacking, it helps for the bottom of the bag to protrude between the slots so it does not get pinched.
The TA-07 works with pallet jacks as well as forklifts and is aimed at uniform loads. The TA-08 is double-sided, is handled by forklift only, performs better in racking (1,000 vs. 800 kg) and is the choice for bags and big bags.
Not directly: they are concentrated, deformable loads, while the published figures are determined with a uniformly distributed load. Ask us for the working capacity that applies to your case.
If your product is a powder or granulate or may drip, or if your packaging could snag in the slots, choose closed. If you handle big bags or need drainage and ventilation, choose perforated.
Can’t find what you’re looking for?
We’ll help you find just what you need
Request more information about our pallets for your business.
Complete our form, and one of our experts will get in touch with you.
Related Products
TA-03
-
Dimensions
48 X 48 in
-
Weight
27.2 kg
-
Static Load
10,000 kg
-
Dynamic Load
1,800 kg
-
Rack Load
700 kg
TA-07
-
Dimensions
48 X 40 in
-
Weight
23.25 kg
-
Static Load
15,000 kg
-
Dynamic Load
1,700 kg
-
Rack Load
800 kg

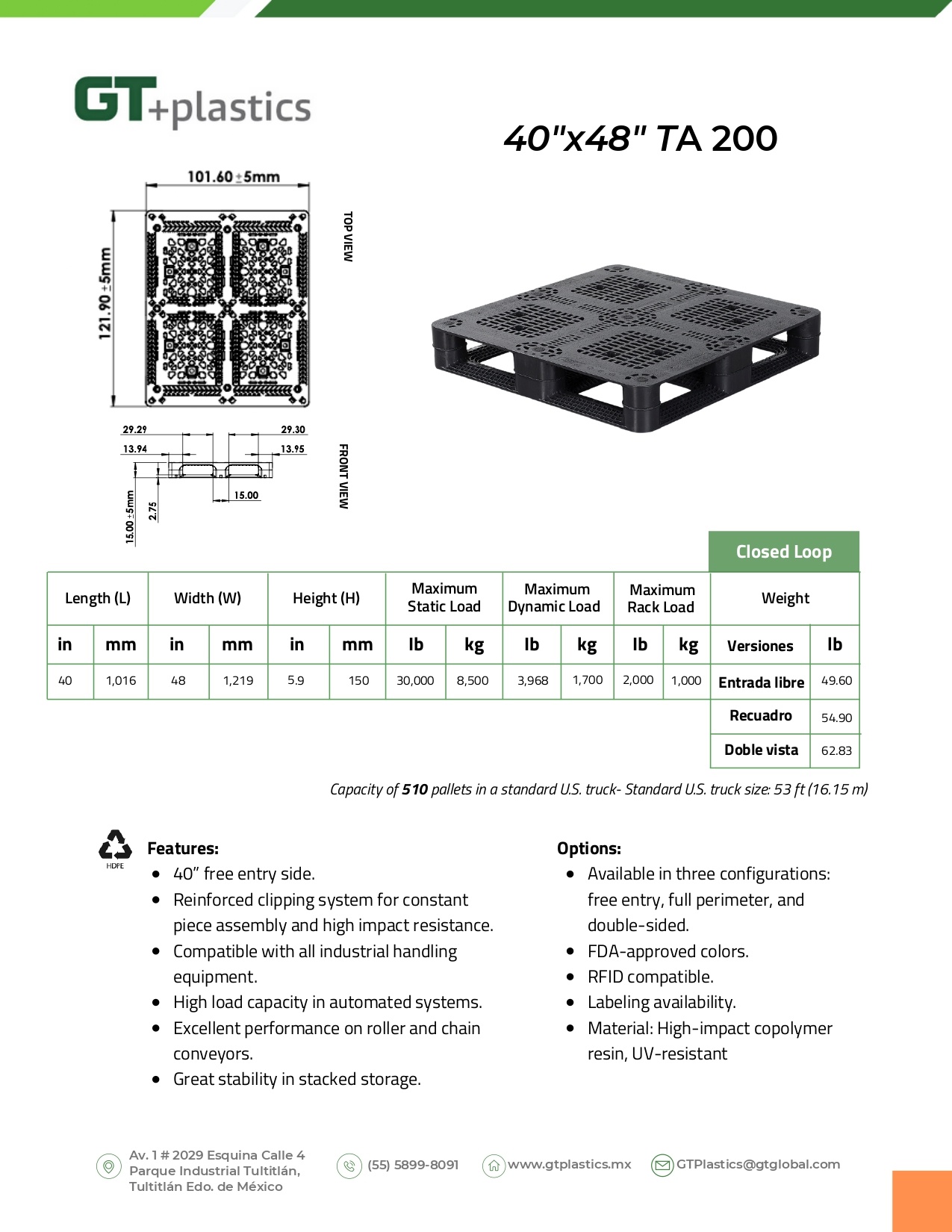

TA-200
-
